Perma-Cyl Series

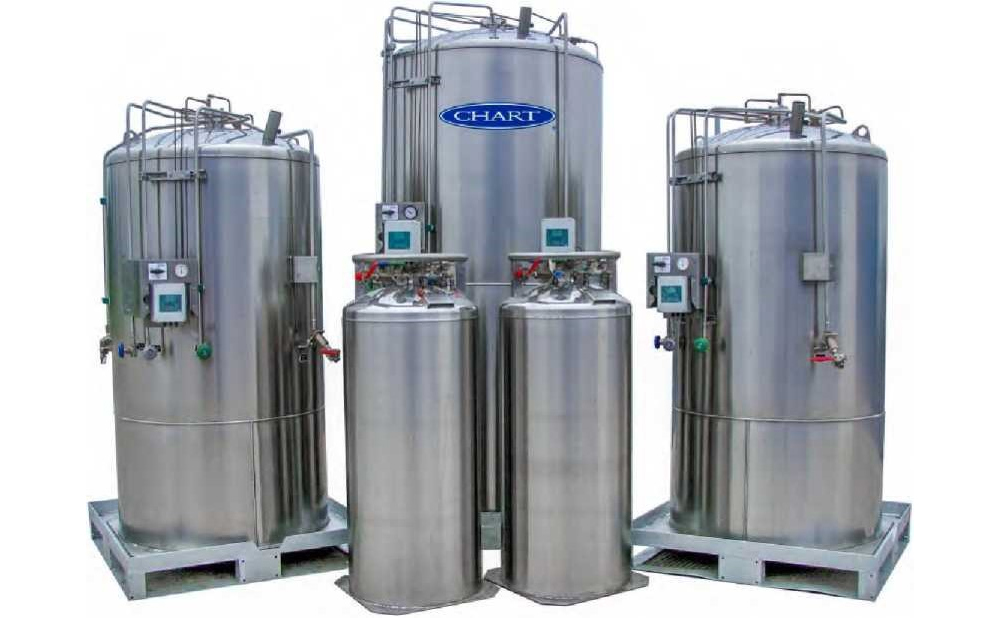

CHART PERMA-CYL 소형 초저온 저장탱크(450L~2000L)
(주)두진은 CHART Industries inc의 공식에이전트로서 지난 30여년 동안 초저온 액화가스 탱크분야의 선두를 지켜온 CHART사의 액체질소, 액체산소, 액화수소, 액체아르곤, 탄산가스, LNG 등을 저장할 수 있는 초저온 벌크 탱크들을 공급해 왔습니다.
Chart 초저온 저장탱크는 세계적인 품질과 신뢰성으로 반도체, 화학, 바이오, 제약, 병원 등의 우수한 성능으로 각광받으며 1990년대 이후 국내 초창기 초저온 저장탱크 시장을 이끌어오며 현재까지도 많은 고객에게 각광받고 있습니다.

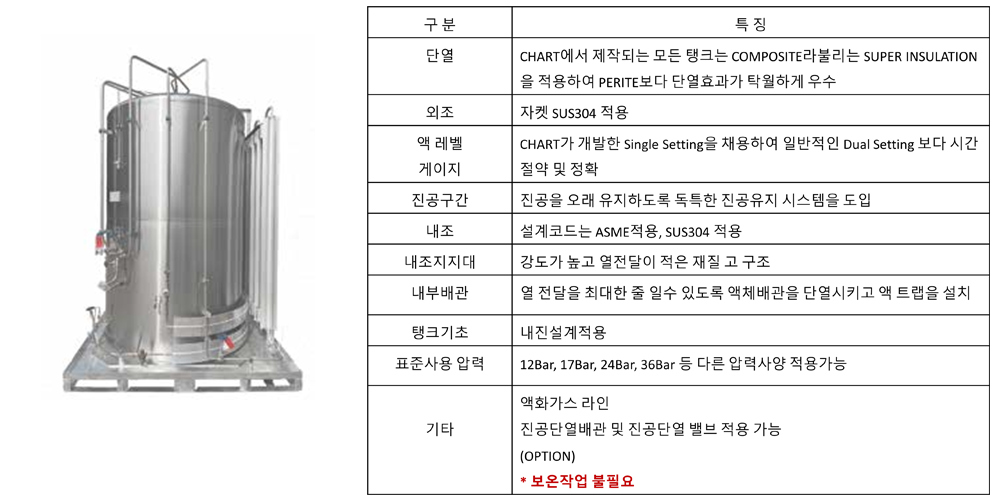

PERMA-CYL SERIES (450L~5000L)
소형 MICRO TYPE으로 시공이 간단함 /실내 설치가능/내외조 모두 SUS304 적용
- The Perma-Cyl series is an innovative MicroBulk gas storage platform that is designed to improve the economics, distribution and convenience of industrial, scientific and medical gases. Evolved from proven technology used for many years in Chart liquid cylinders, Perma-Cyl units are reliable, efficient and more economical than comparable transportable cylinders.
- The Perma-Cyl MicroBulk Storage System allows small users to enjoy the benefits of on-site gas delivery, gone are the hassles, waste, and expense of full-for-empty gas cylinders, Using Perma-Cyl storage tanks, there are no cylinders to change, no residual gas losses, no back, hand or foot injuries from handling cylinders, and no lost or damaged cylinders.
- Perma, a small storage tank, is designed for high efficiency and long-term storage of cryogenic gases such as lox, Lin, lng, lh2 and other media. Its excellent adiabatic properties make the cryogenic liquid can be stored for a long time with little gasification loss.
- Fast filling capability
- No loss/low loss charging
- Excellent thermal insulation performance
- When used with ORCA car, it can automatically fill the liquid level and cut the filling
- Standard integrated pallet base, on-site installation is more convenient
- Reserved liquid level, pressure remote signal interface (better scalability)
- First on-site filling solution for packaged gas or cylinder gas users
- Size, pressure and structure to meet most needs
- Container capacity 230L to 5000L
- Pressure from 1.6MPa to 3.5MPa
- Patented automatic filling closing function. When the Perma-Cyl system is fully charged, the Orca car system automatically and safely stops charging
- High pressure models can supply laser cutting industry
- Combined pressure control regulator with micrometer adjusting knob or screw, more conducive to pressure regulation in application
- Wide range of pressure, in line with various working conditions
- Used for high-purity liquid storage, slow pressure rise, low manage- ment costs
- Automatic full level cutting when filling with ORCA car (patented design)
- The Perma-Cyl MicroBulk Storage System allows small users to enjoy the benefits of on-site gas delivery, gone are the hassles, waste, and expense of full-for-empty gas cylinders, Using Perma-Cyl storage tanks, there are no cylinders to change, no residual gas losses, no back, hand or foot injuries from handling cylinders, and no lost or damaged cylinders.
- Perma, a small storage tank, is designed for high efficiency and long-term storage of cryogenic gases such as lox, Lin, lng, lh2 and other media. Its excellent adiabatic properties make the cryogenic liquid can be stored for a long time with little gasification loss.
- Fast filling capability
- No loss/low loss charging
- Excellent thermal insulation performance
- When used with ORCA car, it can automatically fill the liquid level and cut the filling
- Standard integrated pallet base, on-site installation is more convenient
- Reserved liquid level, pressure remote signal interface (better scalability)
- First on-site filling solution for packaged gas or cylinder gas users
- Size, pressure and structure to meet most needs
- Container capacity 230L to 5000L
- Pressure from 1.6MPa to 3.5MPa
- Patented automatic filling closing function. When the Perma-Cyl system is fully charged, the Orca car system automatically and safely stops charging
- High pressure models can supply laser cutting industry
- Combined pressure control regulator with micrometer adjusting knob or screw, more conducive to pressure regulation in application
- Wide range of pressure, in line with various working conditions
- Used for high-purity liquid storage, slow pressure rise, low manage- ment costs
- Automatic full level cutting when filling with ORCA car (patented design)

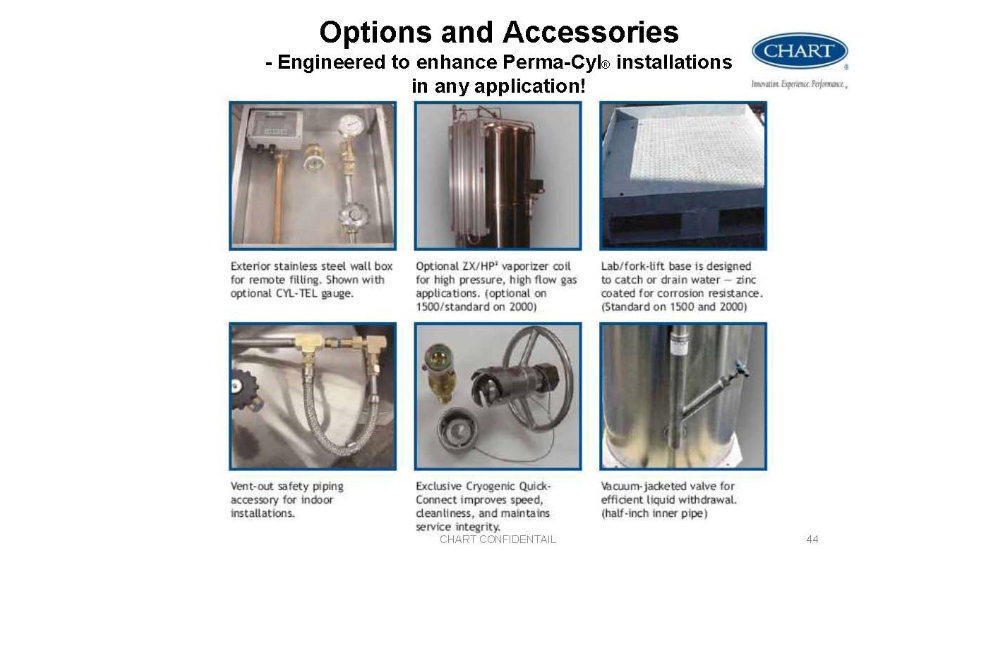

Superior Design & Engineering
- Modular piping systems combine high performance, durability and low maintenance
- A reduced number of joints minimizes the risk of external leaks and facilitates simplified installation
- Easy access to control valves and instrumentation
- A comprehensive range of safety features afford maximum protection to operators and equipment
- Meet seismic requirements
- Engineered, manufactured and tested in accordance with all major international design codes and associated regional requirements
- Unrivaled engineering and manufacturing capacity
- World class facilities strategically located in centers of demand
- Dedicated range for carbon dioxide (CO2)
* a smaller capacity 900 US gallon (3,400 liter) capacity tank is available as standard from our European facilities and a 792 US gallon (3,000 liter) capacity tank is built in India.
- A reduced number of joints minimizes the risk of external leaks and facilitates simplified installation
- Easy access to control valves and instrumentation
- A comprehensive range of safety features afford maximum protection to operators and equipment
- Meet seismic requirements
- Engineered, manufactured and tested in accordance with all major international design codes and associated regional requirements
- Unrivaled engineering and manufacturing capacity
- World class facilities strategically located in centers of demand
- Dedicated range for carbon dioxide (CO2)
* a smaller capacity 900 US gallon (3,400 liter) capacity tank is available as standard from our European facilities and a 792 US gallon (3,000 liter) capacity tank is built in India.

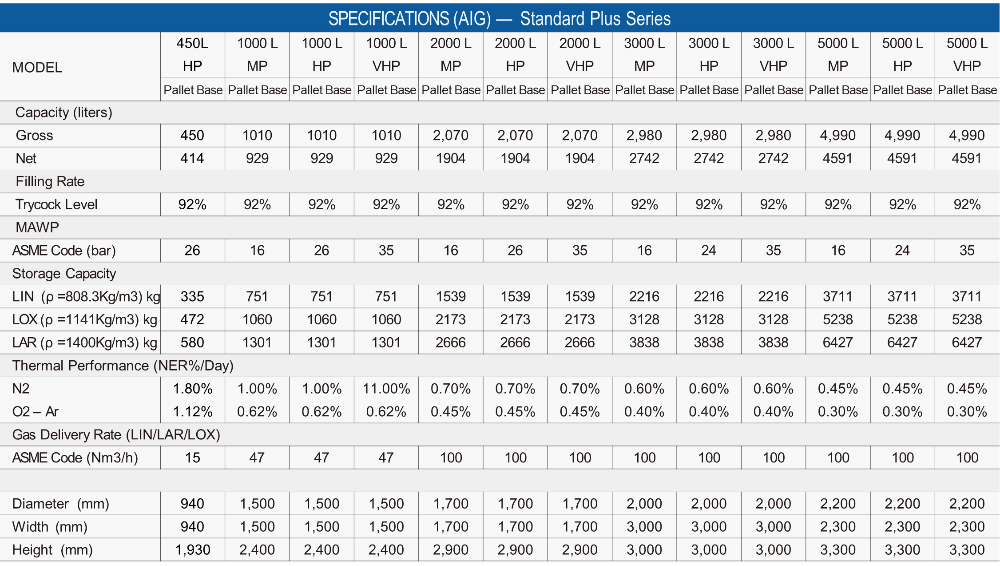

All specifications are subject to change without prior nitice.
1. Values are based on gross capacity. Airgas vessel are based on net capacity at 0 psig (0 barg).
2. Weights do not include base plate.
3. All dimension are measured from the floor to the top of the highest plumbing component.
4. MP model products of ASME code are normally supplied.
1. Values are based on gross capacity. Airgas vessel are based on net capacity at 0 psig (0 barg).
2. Weights do not include base plate.
3. All dimension are measured from the floor to the top of the highest plumbing component.
4. MP model products of ASME code are normally supplied.
Perma-Cyl Applicatons
Perma-Cyl Applications - Continued

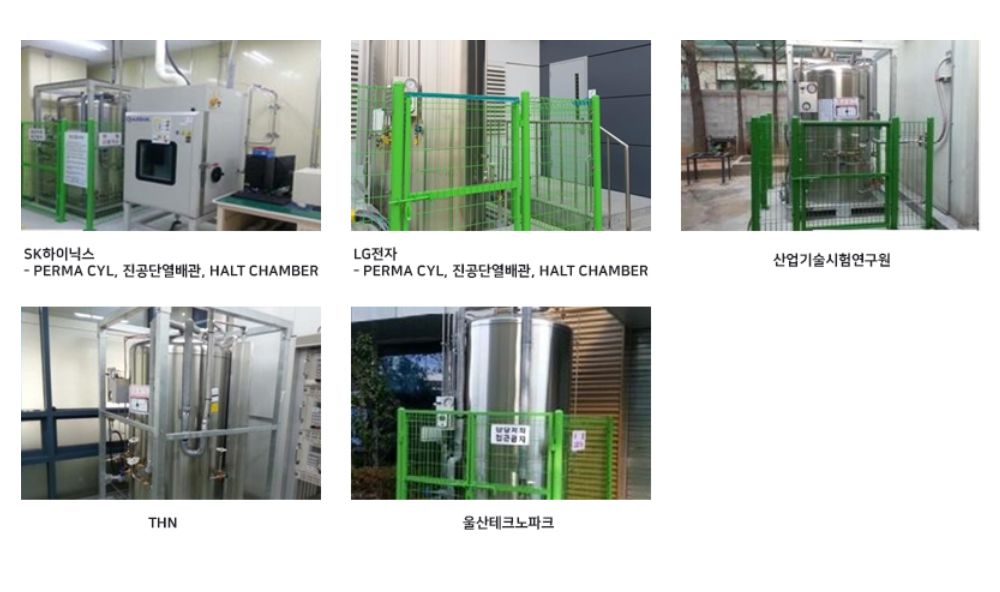

시공사례

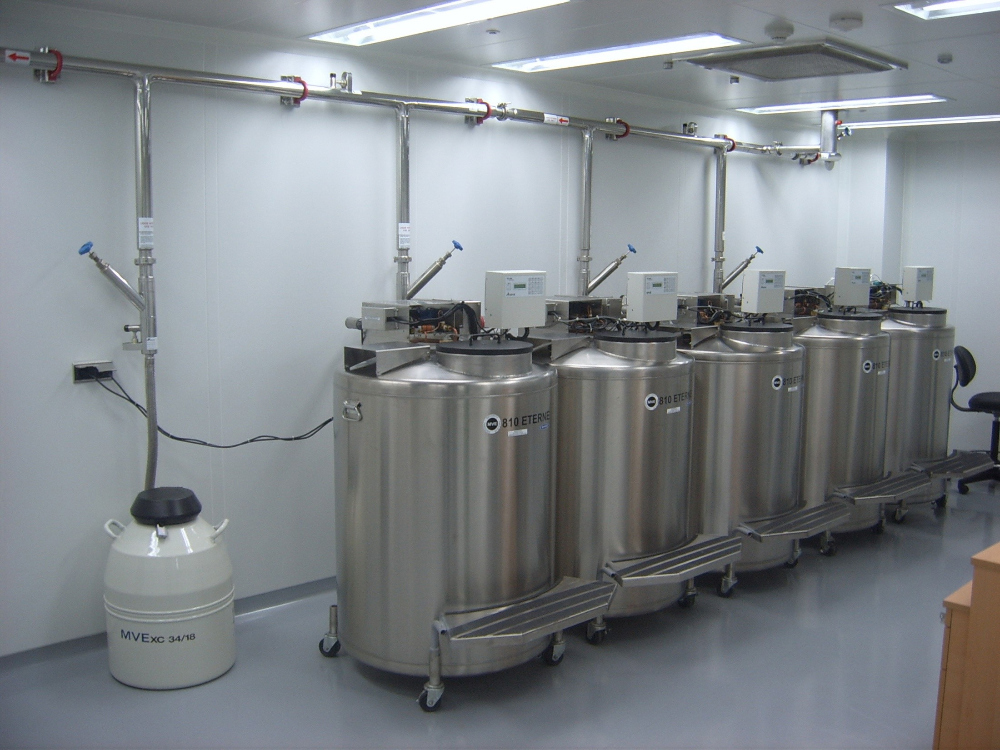

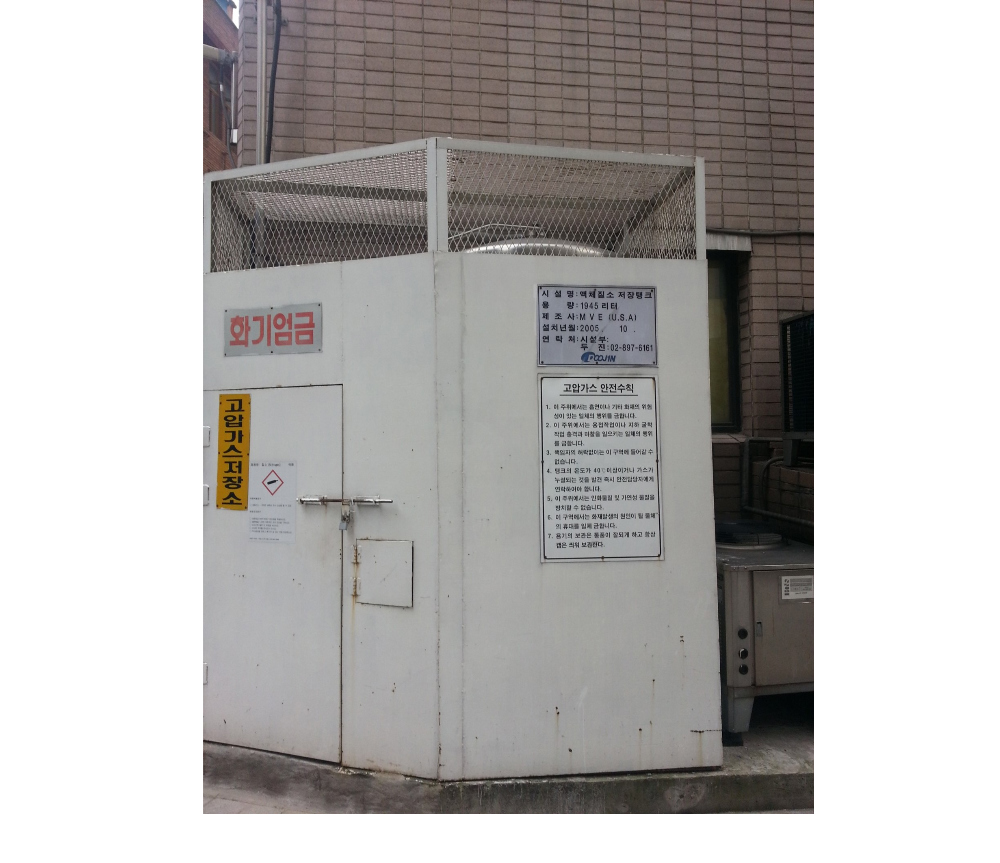

서울대학교 병원 세계줄기세포연구소(황우석박사)
국내최초 설치(2005년) PERMA-CYL 2000, 진공단열배관, 액체질소탱크, DEWAR 외
■ 모든 요구 사항을 충족할 수 있도록 사전 설계된 옵션과 표준 기능을 갖추고 있음
■ ASME 코드에 맞게 설계되었으며 175 및 250 psig(12및 17 barg)로 표준으로 제공

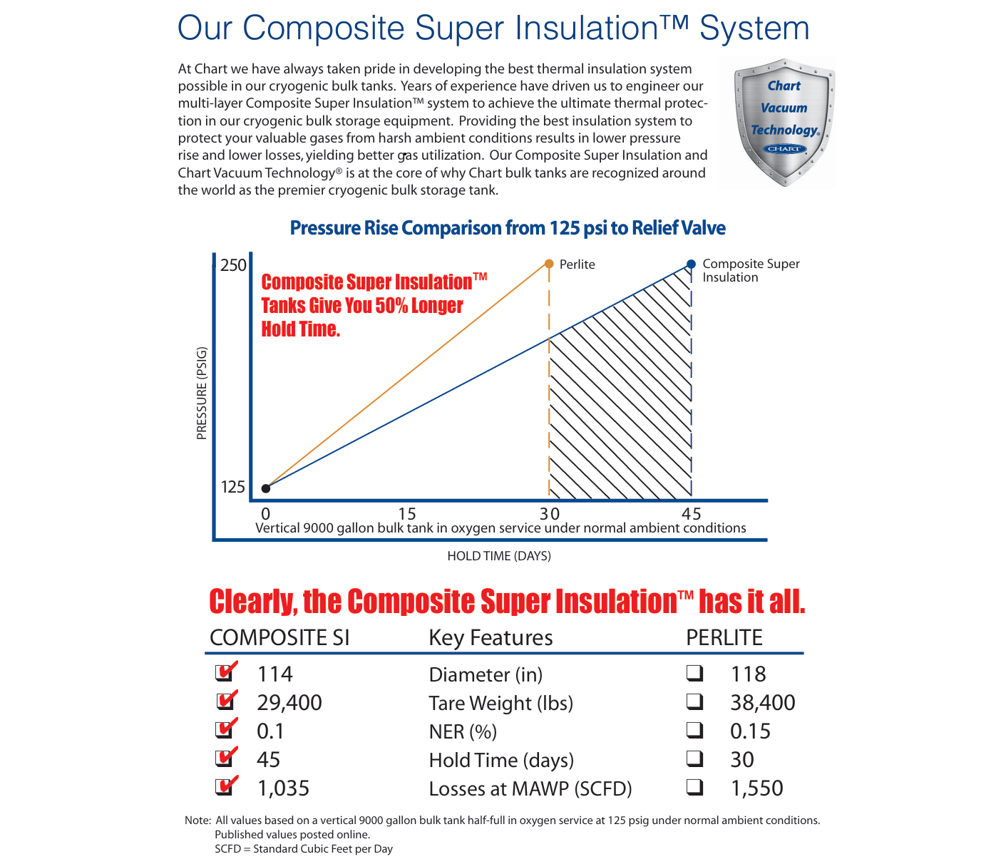

■ 복합 단열 시스템은 높은 단열 성능과 긴 수명으로 교체 주기 비용 절감
■ 경량 설계를 통해 설치 비용 절감
국내최초 설치(2005년) PERMA-CYL 2000, 진공단열배관, 액체질소탱크, DEWAR 외
■ 모든 요구 사항을 충족할 수 있도록 사전 설계된 옵션과 표준 기능을 갖추고 있음
■ ASME 코드에 맞게 설계되었으며 175 및 250 psig(12및 17 barg)로 표준으로 제공
■ 복합 단열 시스템은 높은 단열 성능과 긴 수명으로 교체 주기 비용 절감
■ 경량 설계를 통해 설치 비용 절감
